PUMA Li9-X

7,950.00

Motor Power 9900 W
Battery 117Ah / 9.36Wh
Top Speed 120 km/h
Range max* 225 km
Colors ava…
Charging Time 3:00 hours
Catalog Price € 7950
Tax reduction -€ 1193
Price after tax deduction € 6758
€ 7950
VAT Inclusive(21%)

The model and version you have selected is in stock. After receiving the payment, we can prepare and deliver the vehicle.

SKU: N/A Categories: ,

PUMA; a power machine.

A 125cc equivalent maxi scooter available with 2 battery types, 117ah and 156ah.

Ideal for city traffic and long distances.

Possibility of mounting top box.

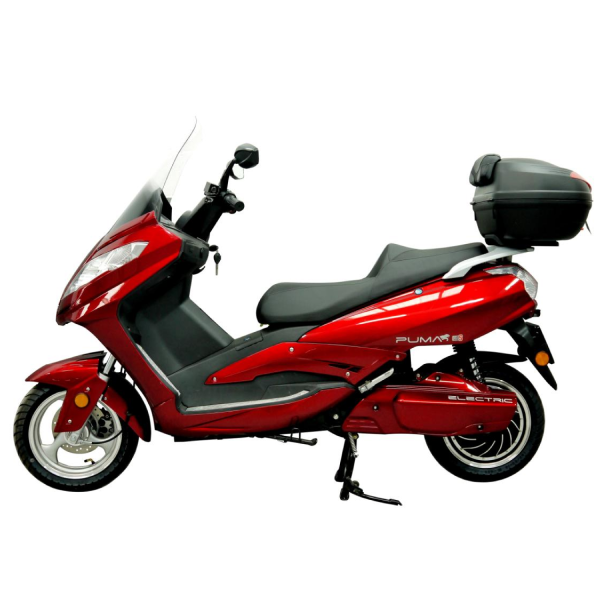

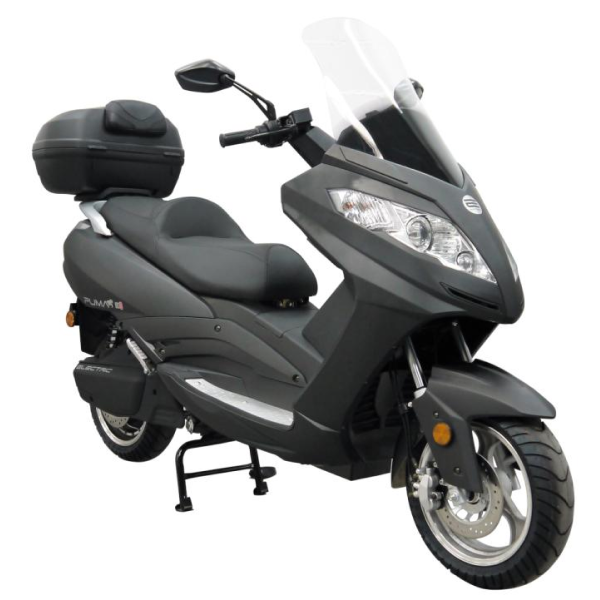

Color scooter

Gray Shiny, Matt black, Wine Red

Seat color

Black

Specification

SPECIFICATION VEHICLE

Speed max
120 km/h
Range max* 225 km
Range min* 150 km
HP
12 hp
Climbing angle capacity
35 °
Colors available
Colors seat available

SPECIFICATION MOTOR

Motor Power
9900 W
Motor type
Brushless Hub
Maximum torque
180 nm
Energy consumption
58 WH/KM

SPECIFICATION BATTERY

Battery Type
LITHIUM (MNC)
Brand batteries
Catl
Battery removable
Ă—
Battery Capacity AH
117 Ah
Battery Capacity WH
9.36 Wh
Battery Voltage
80 V
Number cells / battery packs
1
BMS (Battery Management System)
âś“
Battery Capacity
10, 40 Kwh

CHARGER

Charger power 3680 W
On board charger  ✓
Charging Time 3:00 hours

CONTROLLER

Controller Voltage
80 V
Controller capacity
250 A

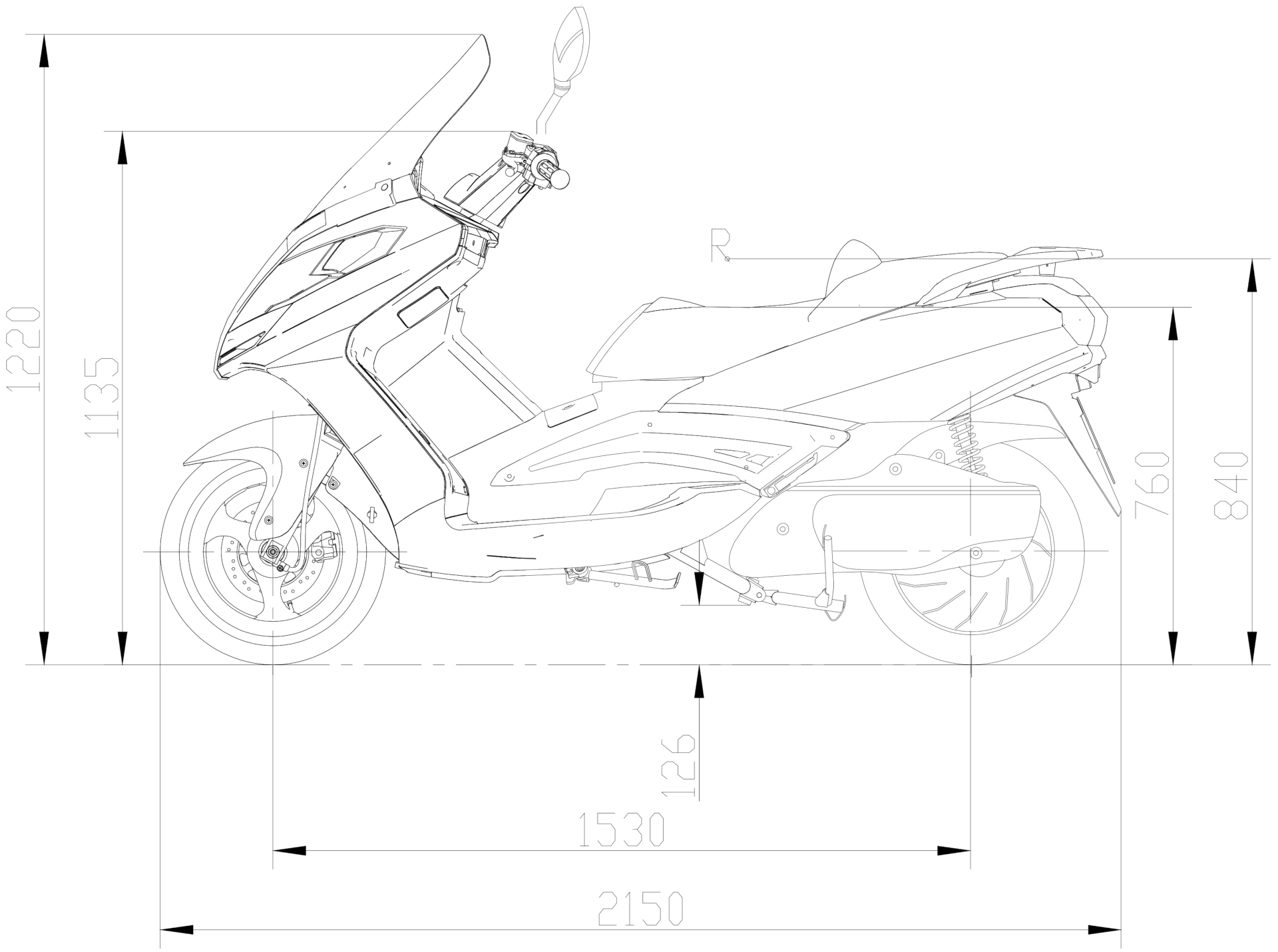

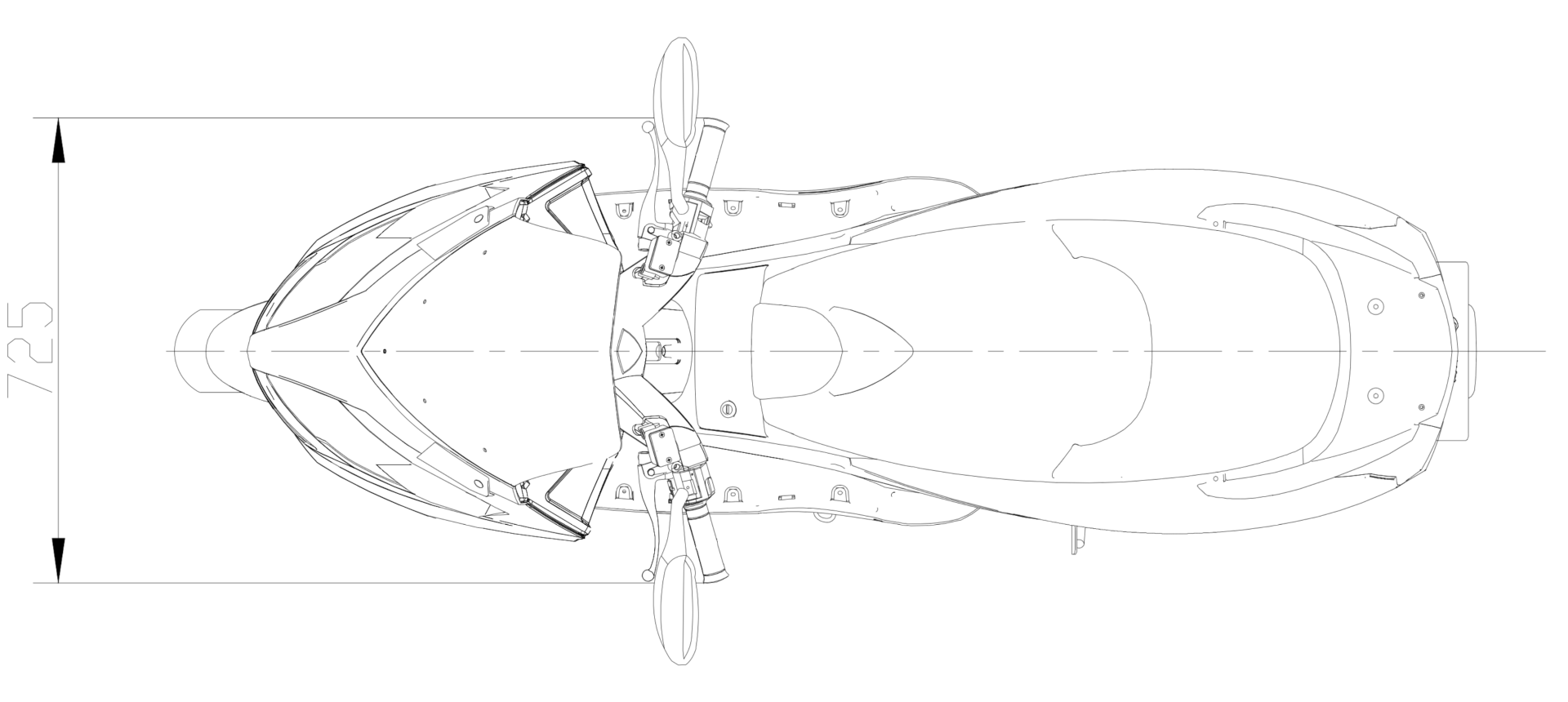

DIMENTIONS AND WEIGHT VEHICLE

Length
215 cm
Width
95 cm
Height
145 cm
Seat height
80 cm
Wheelbase
160 cm
Ground clearance
25 cm
Wheel size front
13 inch
Wheel size back
13 inch
Tyre size front
130/60
Tyre size back
130/60
Weight 185 kg
Maximum total weight
328 kg

STANDARD OPTIONS

Brake energy regeneration  ✓
Reverse gear
âś“
Brakedisk front
âś“
Brakedisk back
âś“

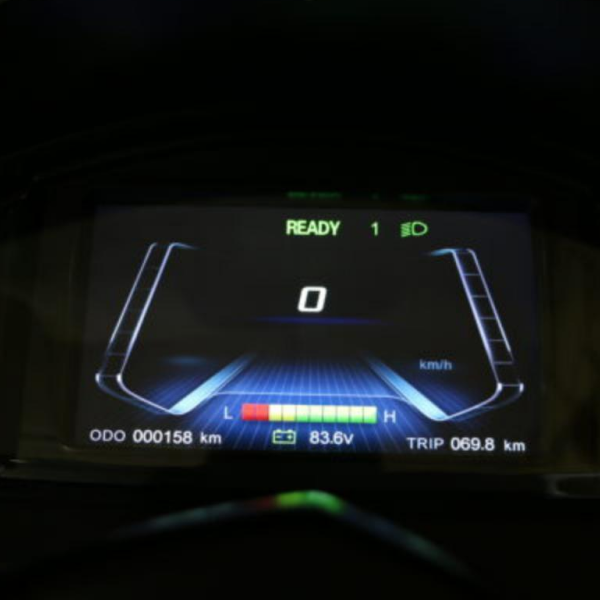

Digital dashboard
âś“
USB Charger
âś“

OPTIONS

Topcase 47L
159.00 €
Backrest topcase
41.00 €

WARRANTY

Vehicle warranty 2 year(s)
Battery warranty distance
50000 km
Battery warranty time
5 year(s)

Administrative Category

Available as motorbike (L3E)
âś“
Available as scooter (L1E)
Ă—
Type driverlicense***
A1-B

Autonomy maximum tested at 20°c with a 70kg driver at half speed.

Autonomy tested at least at 20°c with a 70kg driver at full speed.

https://mobilit.belgium.be/nl/weg/rijden/rijbewijzen/belgisch-rijbewijs

Instruction manual



PUMA.pdf
